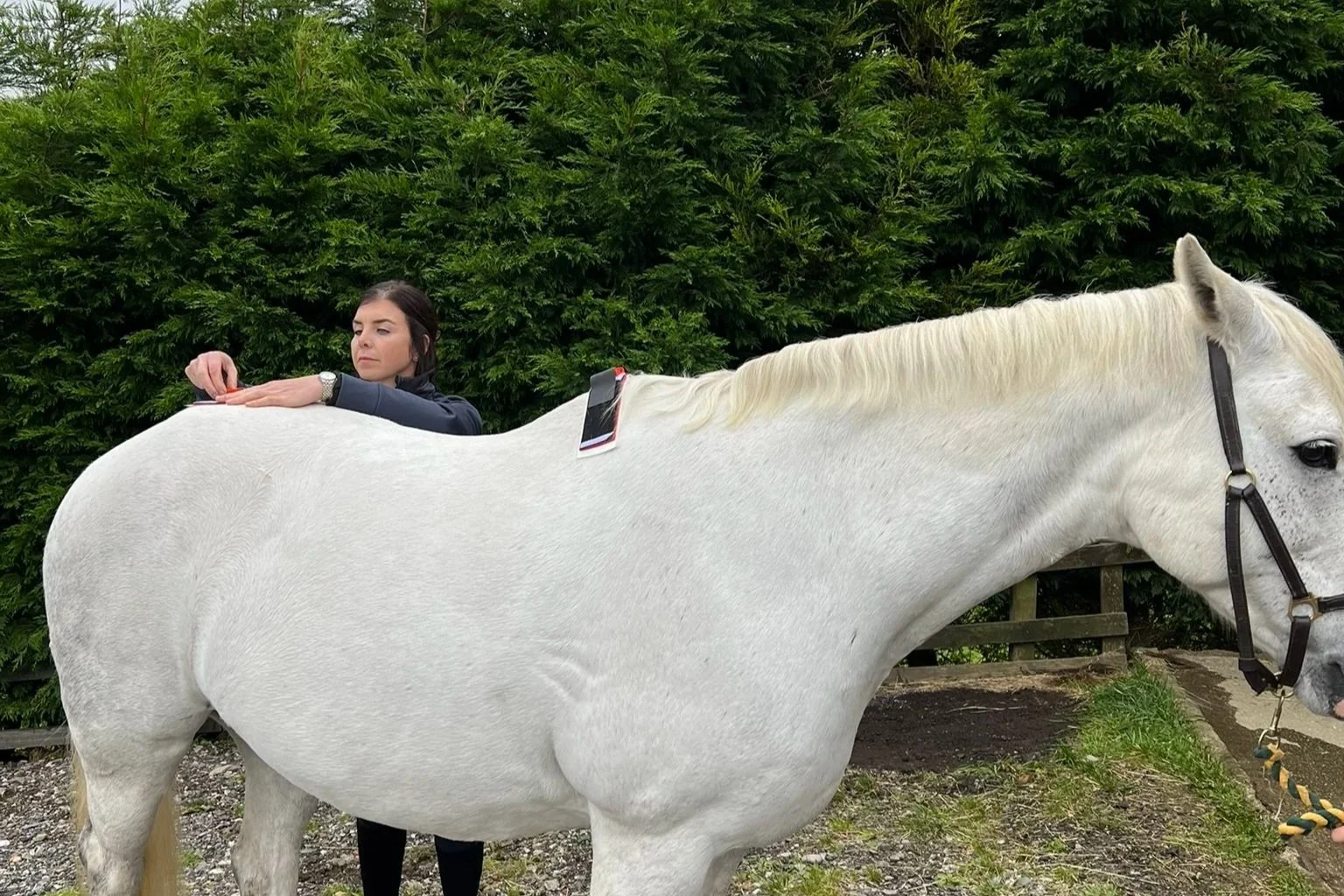

• A woman with dark hair attaches an IMU sensor to the pelvis of a white horse for equine gait analysis. The horse is standing outdoors against a background of dense green foliage.

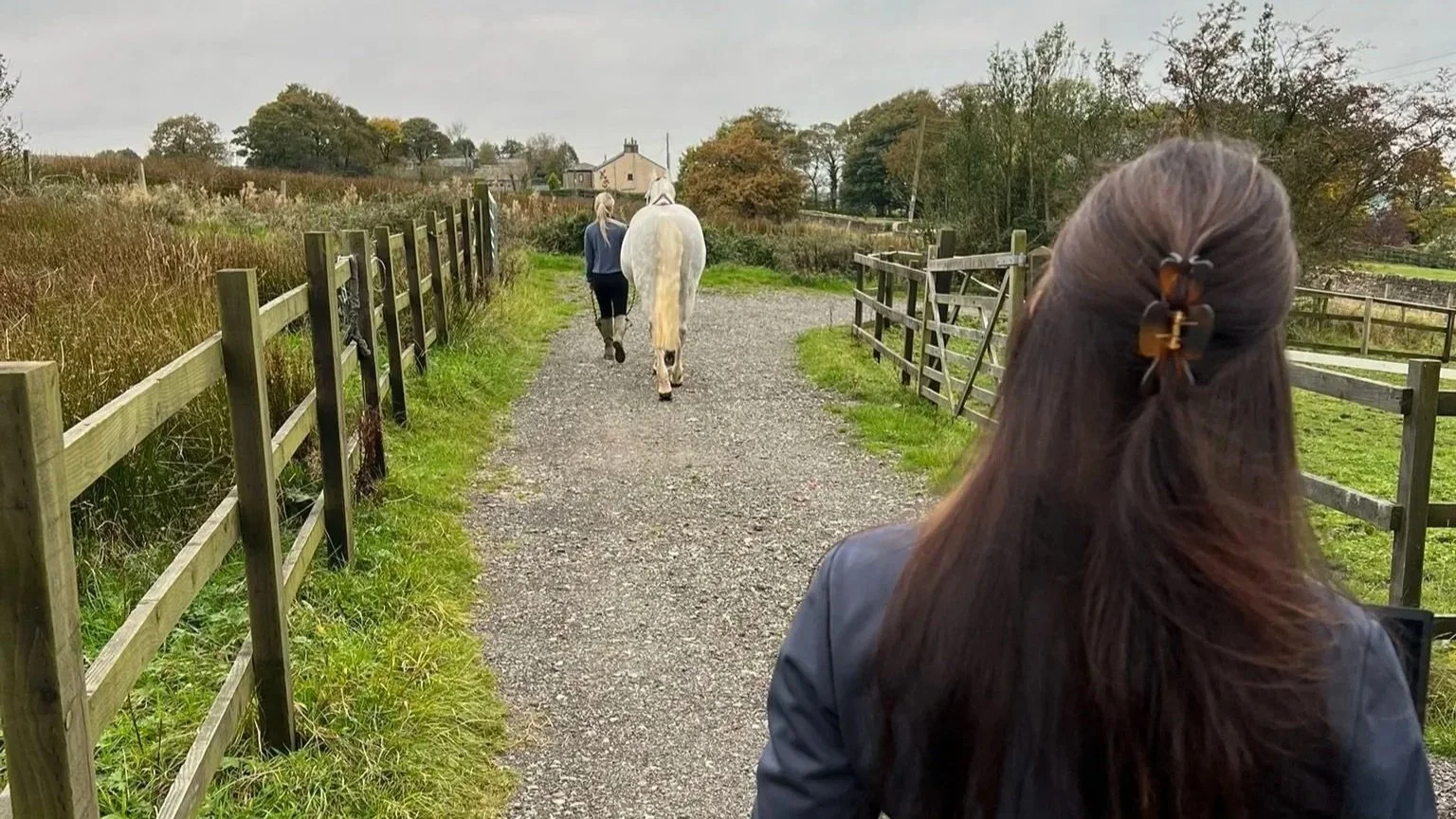

  • Woman walking on a gravel path with a white horse, fenced on both sides, in a rural setting with trees and houses in the distance.

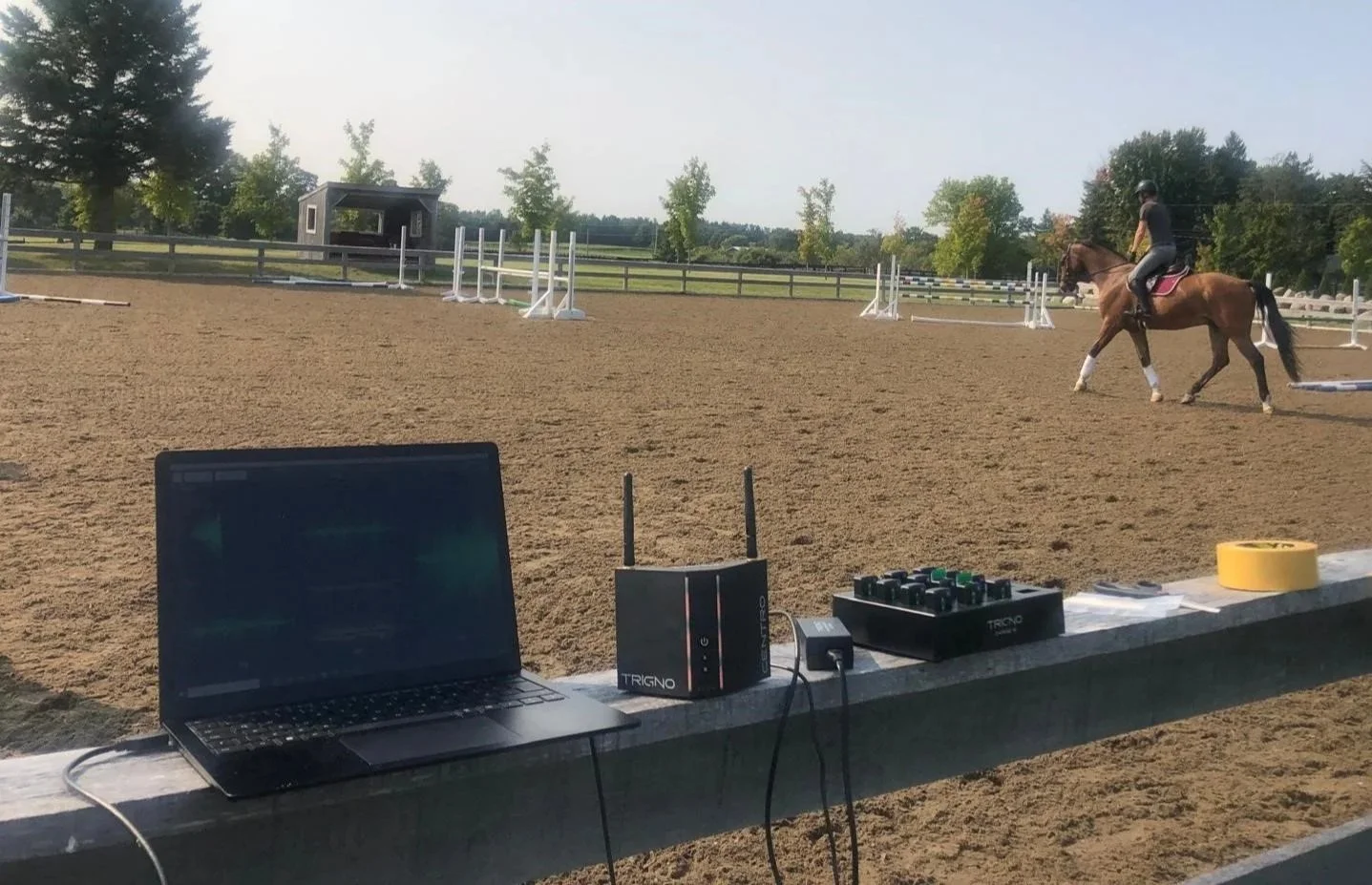

  • An outdoor equestrian jumping arena with a rider on a brown horse practicing. Equipment such as a laptop and Delsys surface electromyography system are set up on a ledge in the foreground.

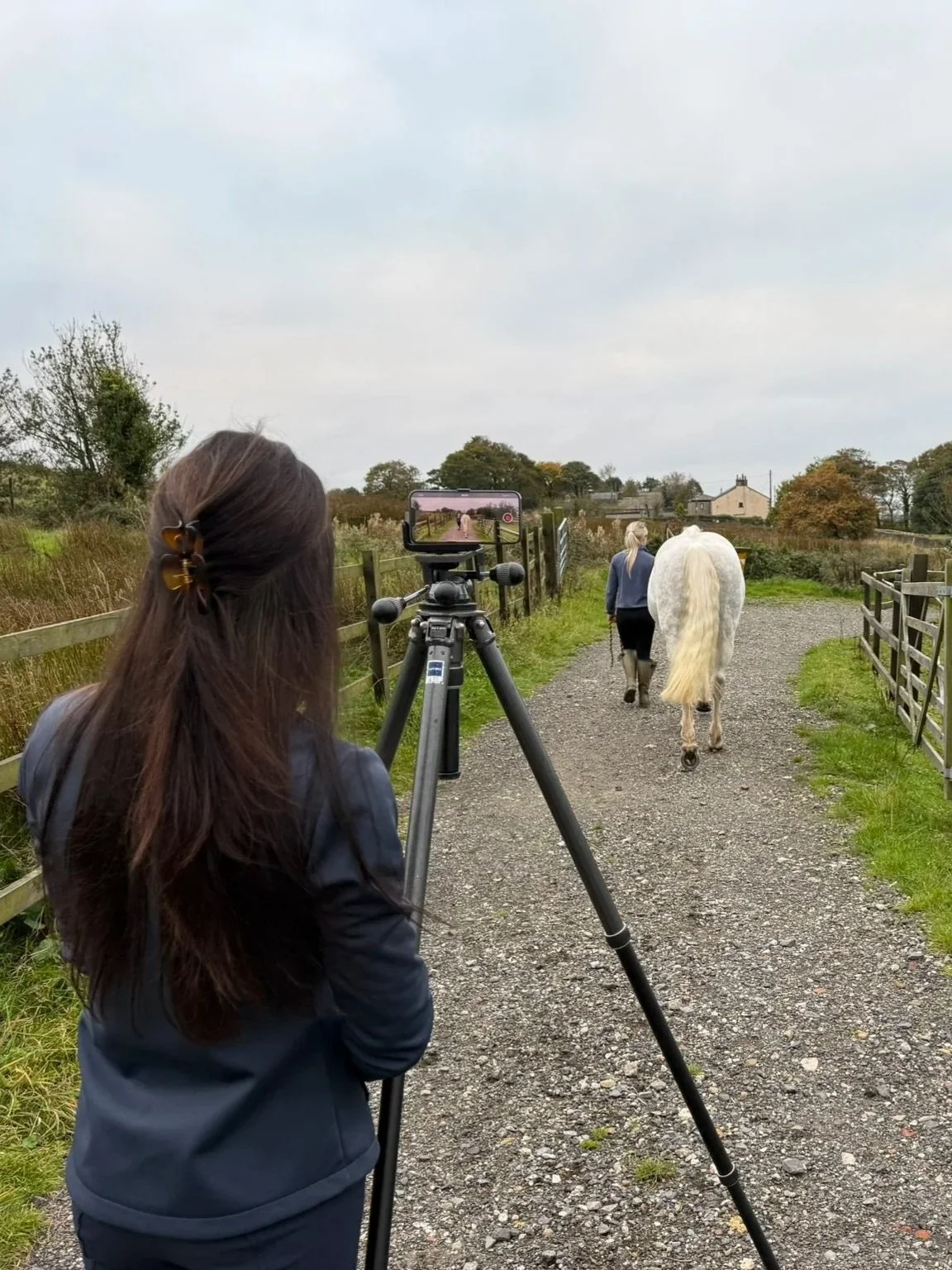

  • A woman films a horse trotting along a gravel path in a rural area, with wooden fences and trees on either side, overcast sky in the background.

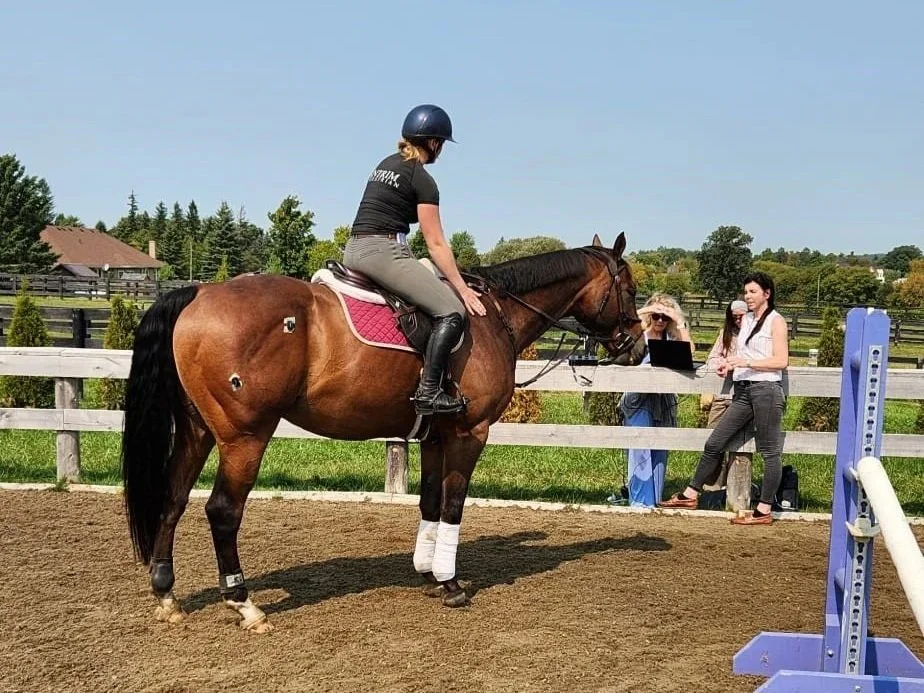

  • A person in riding gear and helmet sitting on a brown horse in an outdoor riding arena, with two women standing near a fence watching and working on a laptop.

Equine Gait Analysis


As humans, our vision and perception of asymmetry is inherently limited. Objective gait analysis goes beyond the constraints of visual/subjective gait assessment, by quantifying movement that is not detectable through human observation alone.

We offer objective gait analysis using a range of advanced wearable sensor and markerless (computer vision) systems. All systems have been scientifically validated and are endorsed by researchers and clinicians. These systems quantify upper-body movement asymmetry, as measured from the head, pelvis and withers, which provides an indirect measure of fore- and hindlimb loading patterns. We are also able to quantify 3D movement patterns of the limbs and back.

Notably, our specialist expertise and access to state-of-the-art technology enables us to uniquely integrate surface electromyography (sEMG) – offering a more comprehensive gait analysis service that non-invasively quantifies underlying muscle activity within the context of resultant movement.

Importantly, these systems permit straightforward collection of accurate data, but expertise is required for reliable interpretation. You can rest assured that our qualifications, knowledge, and experience guarantees an evidence-based approach to interpreting these data. We communicate results in a way that is easy to understand and implement in practice. Data are processed and discussed on site, with a detailed report sent afterwards for your records.

Note: comprehensive, three-dimensional motion capture (3D mocap) is also available for equine gait analysis. This is available only as a Research and Consultancy service, so please get in touch to discuss.

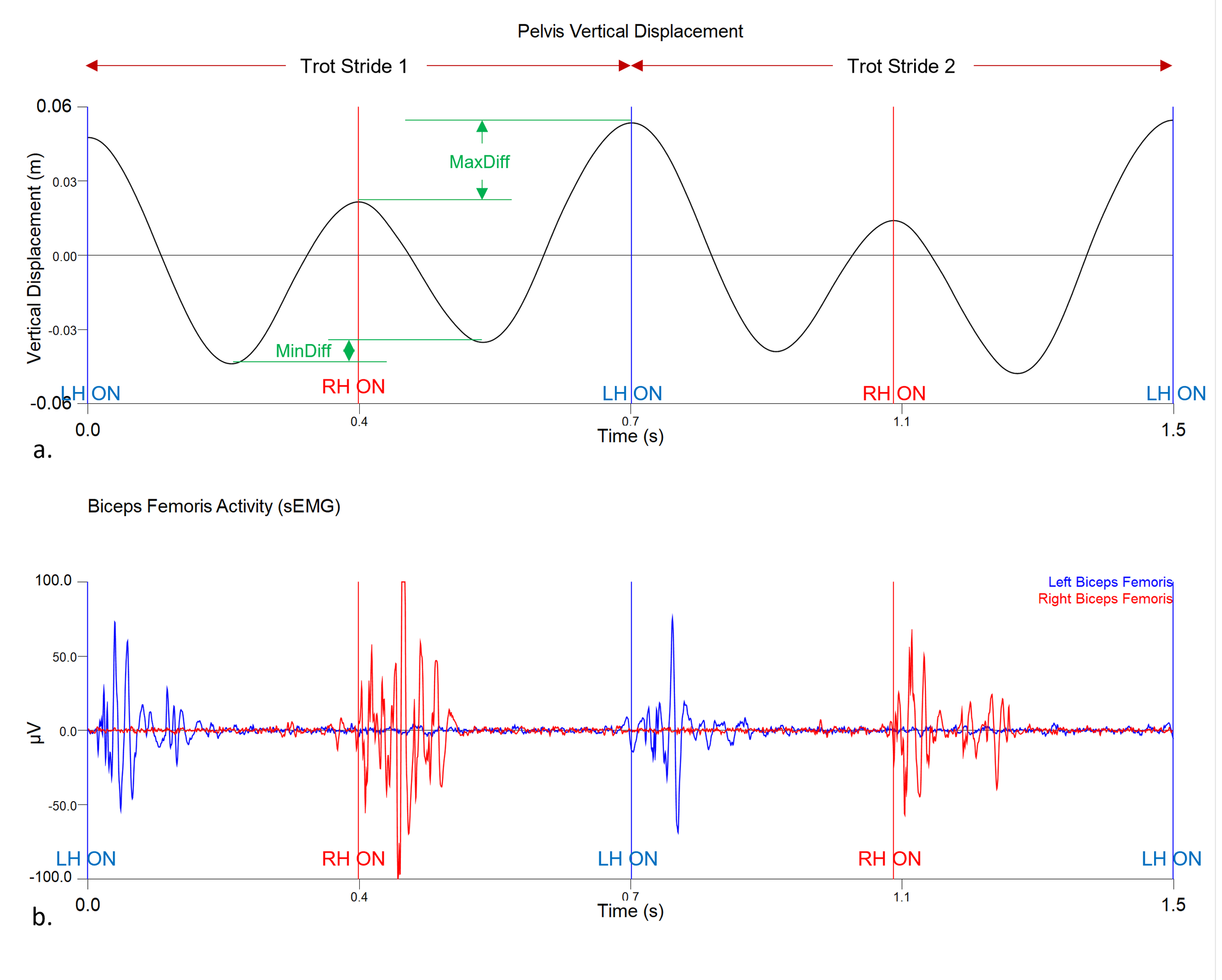

Graph showing pelvis vertical displacement over time with labelled Trot Stride 1 and 2 and left and right stance phases; the second graph displays biceps femoris activity in microvolts for left and right muscles during the same time period.

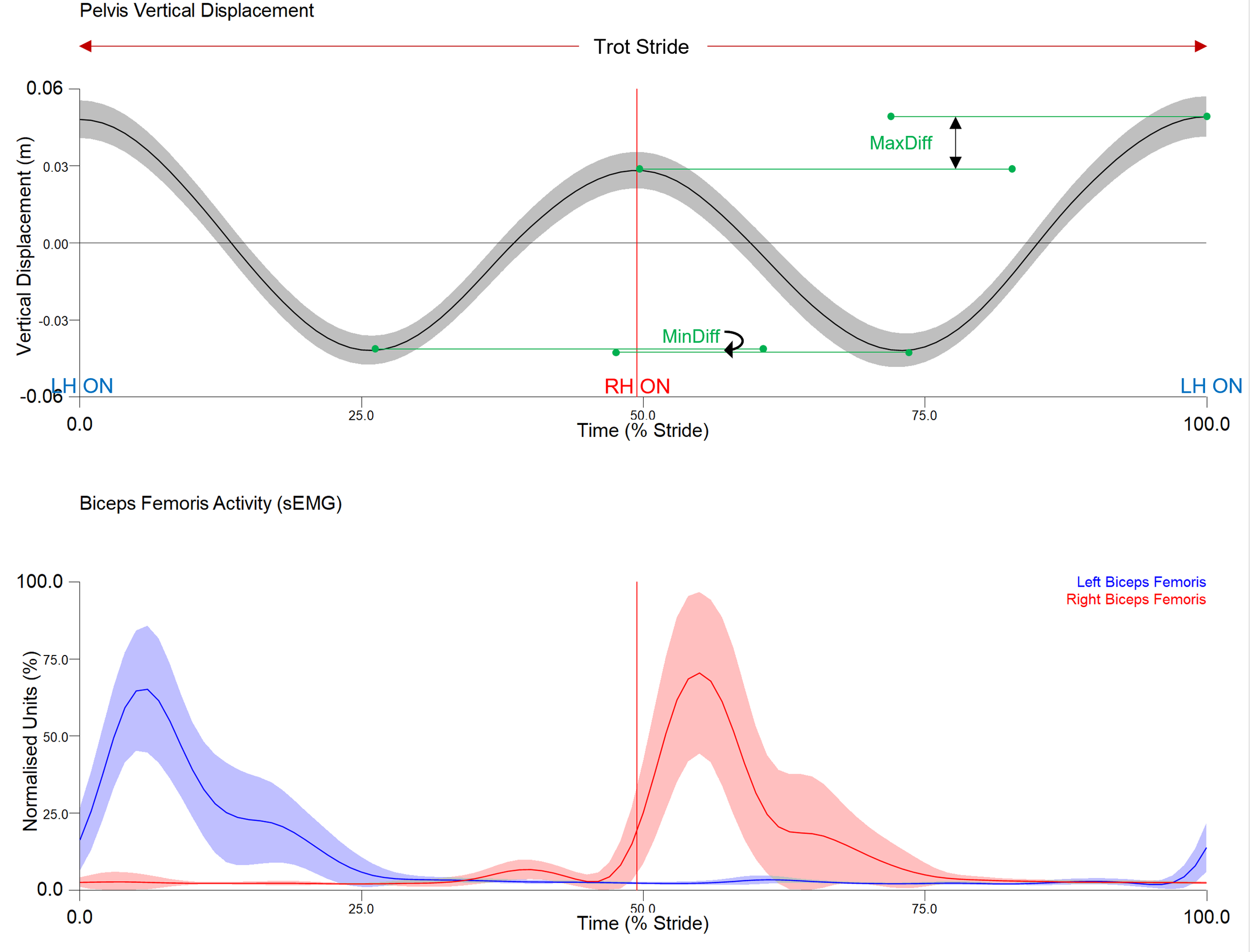

Graph showing pelvic vertical displacement and biceps femoris activity over time during a stride, with maximum and minimum displacement differences and muscle activity levels.

More Info

  • Equine gait analysis, and the objective data it produces, allows us to:

    • Obtain an objective point of reference for individual horse’s movement and muscle activity.

    • Document and monitor an individual horse’s progress within rehabilitation or athletic training programs.

    • Evaluate the efficacy of therapeutic interventions, rehabilitation or training programmes and, where necessary, make evidence-informed modifications.

    • Enhance communication and systematic monitoring within the multi-disciplinary team (i.e. veterinarian, farrier, physiotherapist, trainer, saddle fitter).

  • Sensors will be attached, using double sided tape, to the horse’s lower limb and upper body (e.g. over the poll, withers and pelvis). Quantifying muscle activity using sEMG is optional and involves placing sensors over superficial muscles of interest. Please note that a small area of the horse’s coat must be removed from sEMG sensor locations only. Data are then collected from horses during in-hand walk and trot on a straight line and during lunging in both directions. Data are analysed on-site and explained to the client in an easy-to-interpret manner. A detailed report is sent afterwards.

    Please allow up to 1 hour for both standard and premium services.

  • Standard: £90
    Objective gait analysis using wearable motion sensor (IMU) and/or Computer Vision (Sleip) systems.

    Premium: £120
    Objective gait analysis including measurement of movement asymmetry and underlying muscle activity, using wearable IMU and sEMG sensors.


  • We are based in the North West of England and offer services within a 20 mile radius of BB3. Please note that the following travel fees apply:

    • ≤ 5 miles of BB3: £0

    • 6 – 10 miles of BB3: £5

    • 11 – 20 miles of BB3: £10

    • ≥3 animals per call out: £0
